| 參數 | Specifications | 技術指標 Technique data |
| 線性行程 | Stroke length | 50m | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm |
| 殼體長度 | Housing length | 50+22.5 | 100+22.5 | 150+22.5 | 220+22. | 300+22. | 400+22.5 | 500+22.5 |
| 精度 | Nonlinearity | ± 2%F.S |
| 輸出信號 | Output signal | 1~4VDC，3 conductor/RS485(ModBus-RTU)，4conductor |
| 工作電壓 | Operating voltage | 5VDC，3 conductor (Max:32VDC) |
| 絕緣阻抗 | Insulation resistance | ＞ 100MΩ/500VDC |
| 消耗電流 | Current consumption | ≤15mA |
| 工作溫度 | Operating temperature | -30~120℃ |
| 測量介質 | Measuring Media | 指定型號油品（默認YH-10航空液壓油）或根據客戶要求油品標定 |
| 抗振性能 | Vibration proof | IEC 60068-2-6(5…2000Hz，20g) |
| 耐沖擊性 | Strike proof | IEC 60068-2-7(50g，11ms) |
| 抗干擾 | EMC proof | IEC 61000-6-2/3/4 |

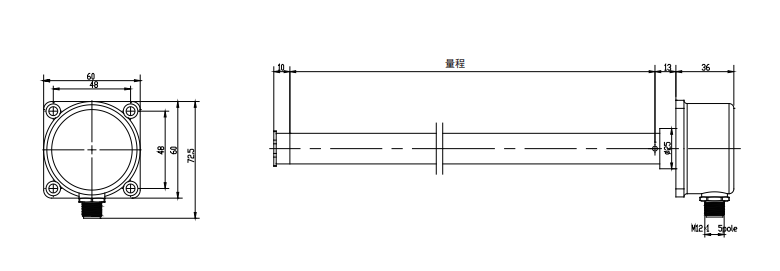

| 機械連接 | Mechanical connection | 法蘭式如上圖 |
| 外殼材質 | Material | 鋁合金 |
| 防護等級 | Ip protection | IP65 |
