| 參數 | Specifications | 技術指標 Technique data |
| 量程 | Range | 0~100mm |

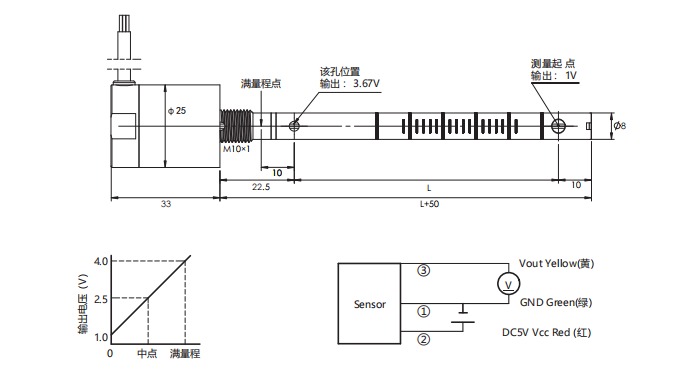

| 殼體長度 | Housing length | L + 50mm |
| 精度 | Nonlinearity | ＜±2%F.S |
| 輸出信號 | Output signal | 1VDC~ 4VDC 及其他 |
| 工作電壓 | Operating voltage | 12VDC (6~15VDC ) 或 24 VDC |
| 絕緣阻抗 | Insulation resistance | ＞ 100MΩ/500VDC |
| 消耗電流 | Current consumption | ≤15mA |
| 工作溫度 | Operating temperature | -40℃~+70℃ |
| 測量介質 | Measuring Media | 指定型號油品（默認YH-10航空液壓油）或根據客戶要求油品標定 |
| 抗振性能 | Vibration proof | IEC 60068-2-6(5…2000Hz，20g) |
| 耐沖擊性 | Strike proof | IEC 60068-2-7(50g，11ms) |
| 絕緣耐壓 | Dielectric Strength | 2000VAC 1分鐘(螺紋位置與電纜線之間) |
| 機械連接 | Mechanical connection | M10×1，M12×1.5，M14×1.5 |
| 外殼材質 | Material | 304不銹鋼 |
| 防護等級 | Ip protection | IP65 |
