NS-P-I
高精度型，極好的長期穩定性
最高精度可達0.02%Fs BSL
通過EMC、振動、沖擊等測試
疲勞強度大于1000萬次
獲得Exia防爆證書
| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 0~1.0…1.6…3.0…10…20… 40…60…70… 80…90...100MPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S 150%F.S 150%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S 300%F.S 200%F.S | |||||||||
| 工作方式 | Operational Mode | 表壓，絕壓 | |||||||||
| 測量介質 | Measuring Media | 對不銹鋼304和 316L不腐蝕的氣、液體 | |||||||||
| 輸出信號 | Output signal | 4~20mA 0~5VDC 0~10VDC Hz | |||||||||
| 工作電壓 | Operating voltage | 24VDC(16~32VDC) | |||||||||
| 綜合精度 | Accuracy | ±0.05%F.S ±0.1%F.S ±0.25%F.S | |||||||||
| 長期穩定性 | Long-term drift | ≤±0.1%F.S/ 年（典值） | |||||||||
| 工作溫度范圍 | Operating temperature range | -40~+100℃ | |||||||||
| 介質溫度范圍 | Fluid temperature range | -40~+120℃ | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥200MΩ(200VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干擾 | EMC proof | IEC 61000-4-4 Ⅱ級 | |||||||||

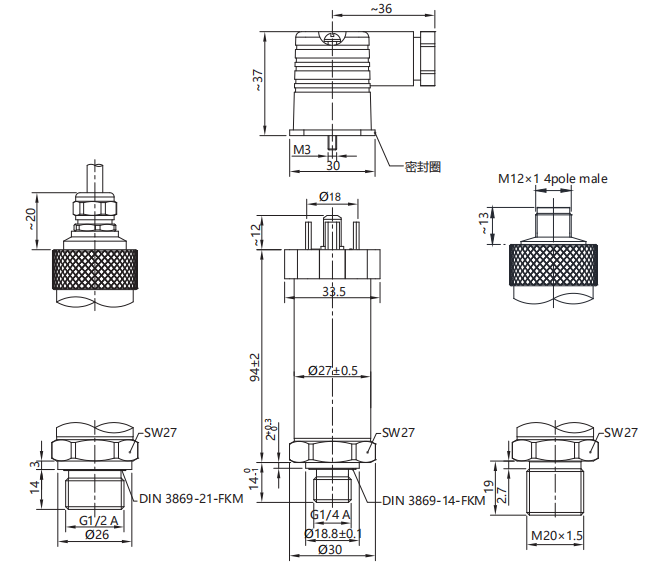

| 機械連接 | Mechanical connection | G1/4 A, G1/2 A, NPT1/4, NPT1/2, M20×1.5, M12×1 74°錐 | |||||||||

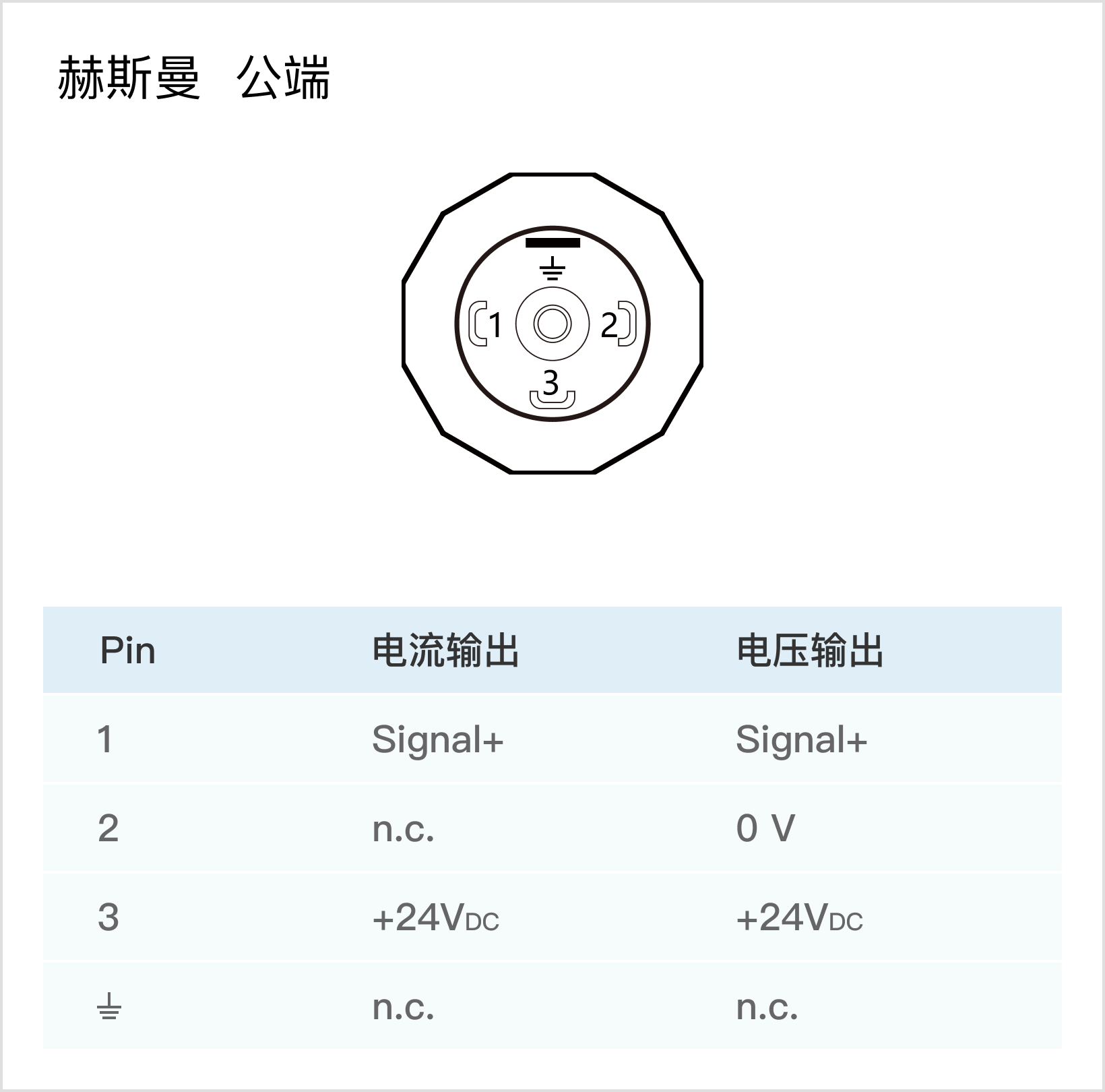

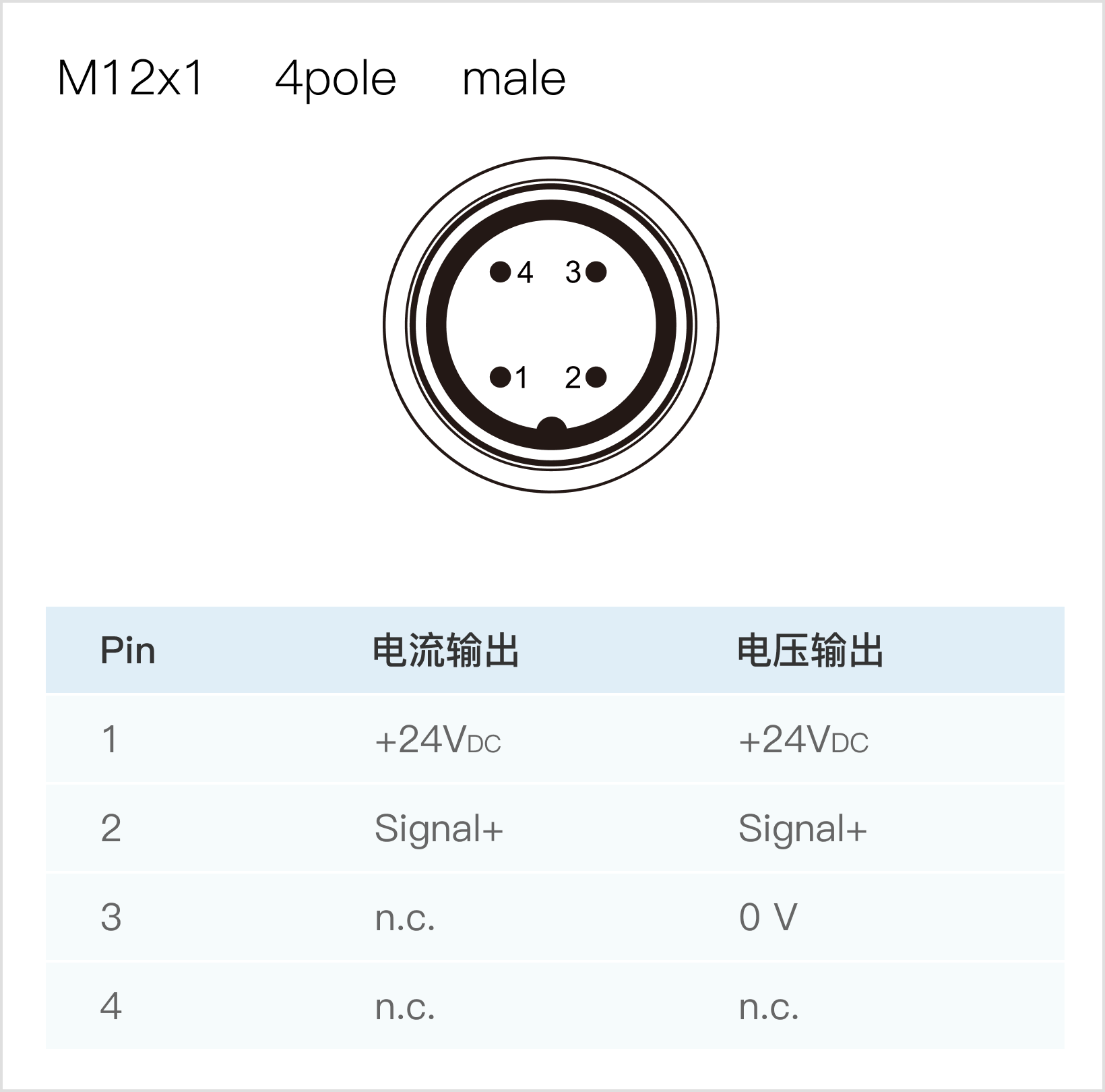

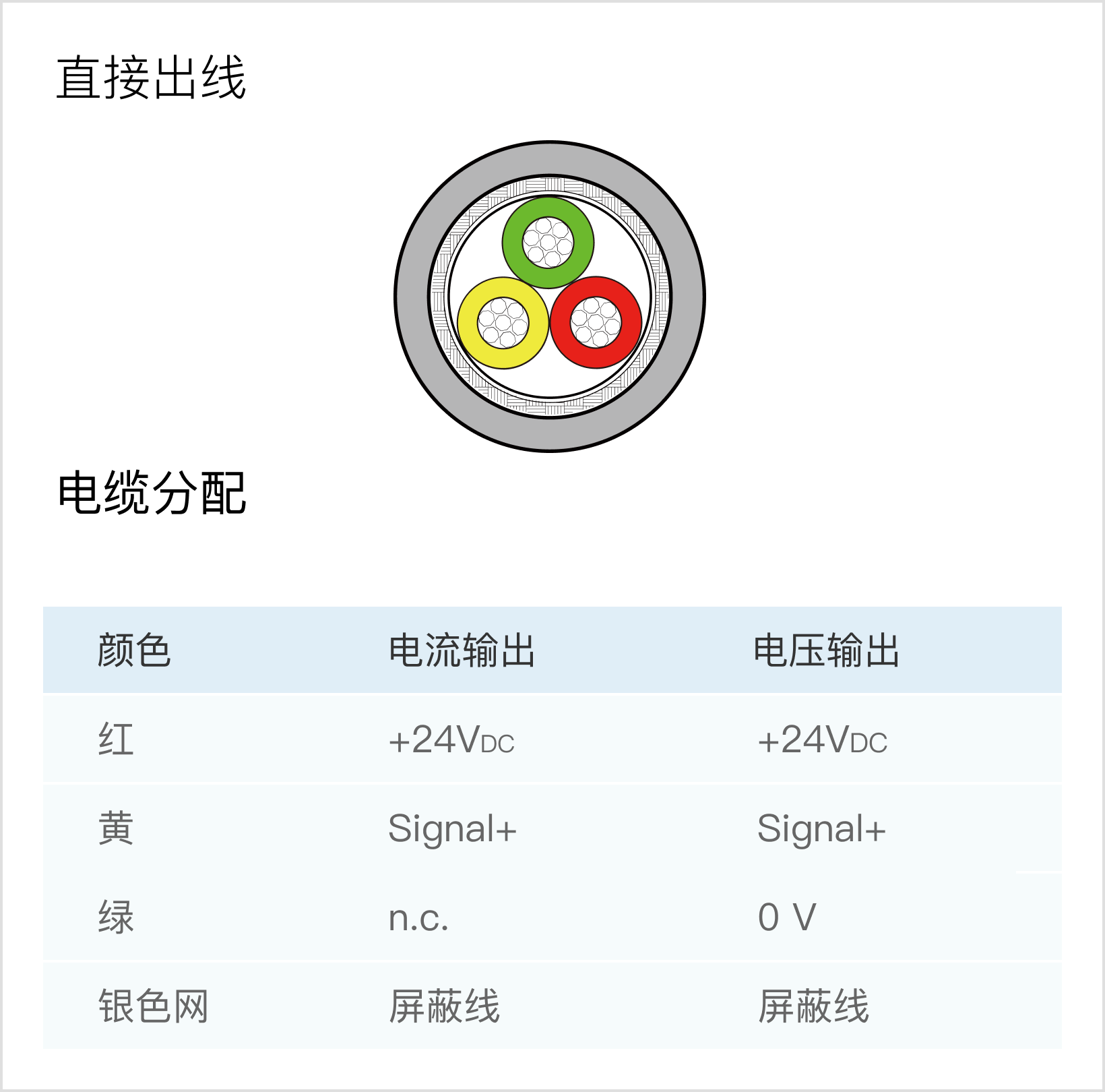

| 防護等級 | IP protection | IP65 (赫斯曼接插件) IP67 (M12×1連接器或直出線) | |||||||||
