| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 0.1...0.3...0.5...0.8...1...1.6...3.0...10...35MPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S | |||||||||
| 工作方式 | Operational Mode | 表壓，絕壓 | |||||||||
| 測量介質 | Measuring Media | 無腐蝕且不導電的氣體 | |||||||||
| 輸出信號 | Output signal | 100mV | |||||||||
| 工作電壓 | Operating voltage | 5VDC | |||||||||
| 綜合精度 | Accuracy | ±0.25%F.S（典值） | |||||||||
| 長期穩定性 | Long-term drift | ≤±0.1%FS/ 年 | |||||||||
| 工作溫度范圍 | Operating temperature range | -55~+120/175℃ | |||||||||
| 儲存溫度范圍 | Storage temperature range | -40~+120℃ | |||||||||
| 消耗電流 | Current consumption | ≤10mA | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干擾 | EMC proof | IEC 61000-6-2/3/4 | |||||||||

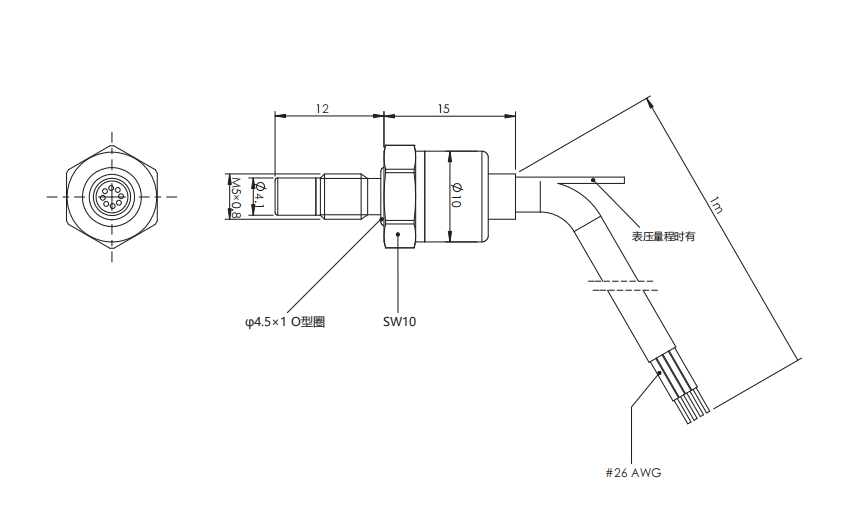

| 機械連接 | Mechanical connection | M5×0.8 | |||||||||
| 外殼材質 | Material | 不銹鋼 | |||||||||
| 防護等級 | IP protection | IP67(直出線) | |||||||||
