NS-P30
二路壓力輸出
通過：振動、沖擊、電磁兼容、霉菌、鹽霧等試驗
專為液壓等領域設計
| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 一路：0～0.8...1.0...1.6...3...10...40...50...60...100MPa 二路：0～0.8...1.0...1.6...3...10...40...50...60...100MPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S 150%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S 200%F.S | |||||||||
| 工作方式 | Operational Mode | 表壓，絕壓，密封表壓 | |||||||||
| 測量介質 | Measuring Media | 對不銹鋼304和 316L不腐蝕的氣、液體 | |||||||||
| 輸出信號 | Output signal | 4~20mA | |||||||||
| 工作電壓 | Operating voltage | 24VDC(16~32VDc) | |||||||||
| 綜合精度 | Accuracy | 二路精度一致性±0.5%F.S(23℃±2℃) | |||||||||
| 長期穩定性 | Long-term drift | ≤±0.2%F.S/ 年 (典值) | |||||||||
| 工作溫度范圍 | Operating temperature range | -40~+120℃ | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥200MΩ/200VDC | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干擾 | EMC proof | IEC 61000-6-2/3/4 | |||||||||

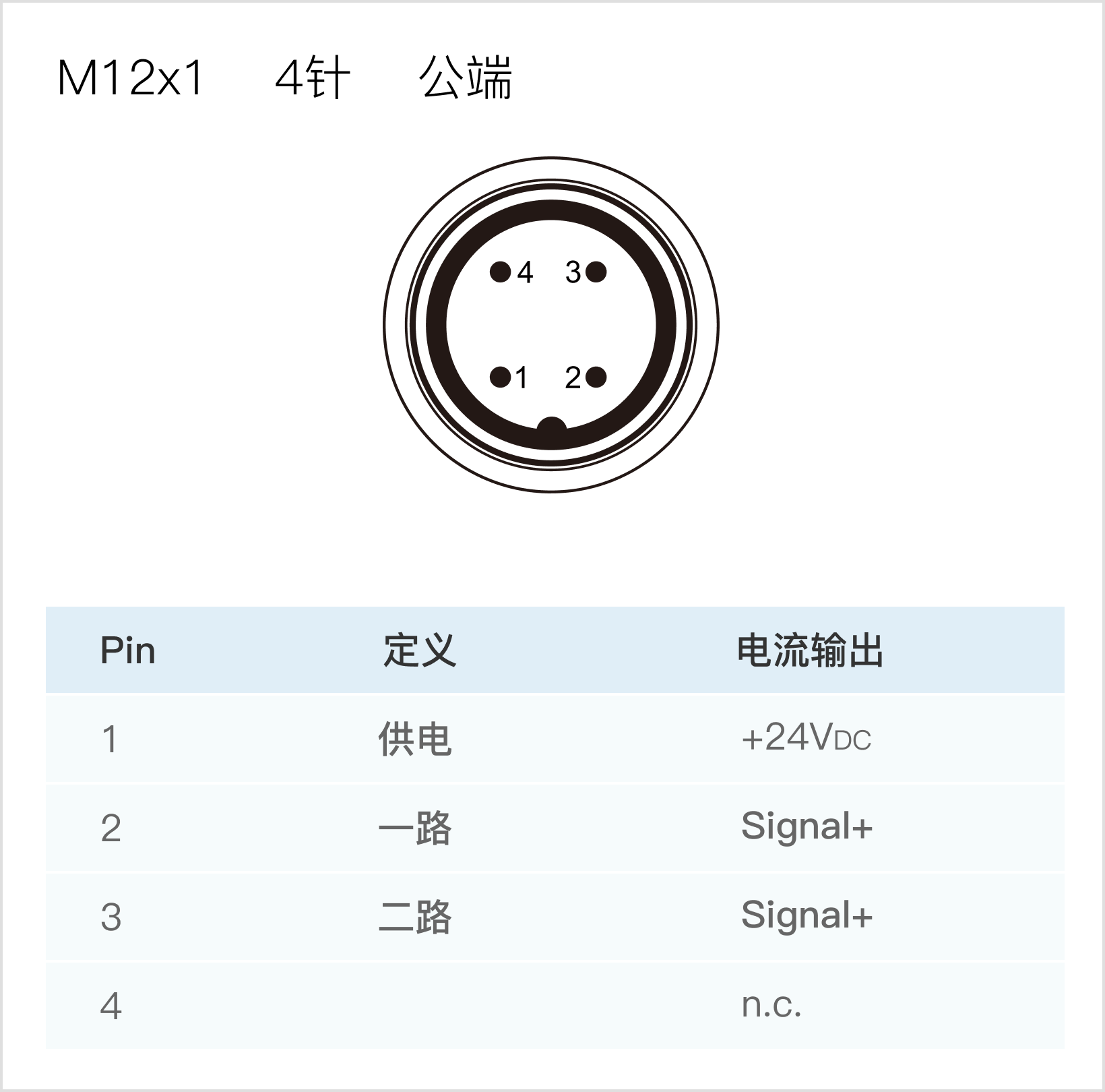

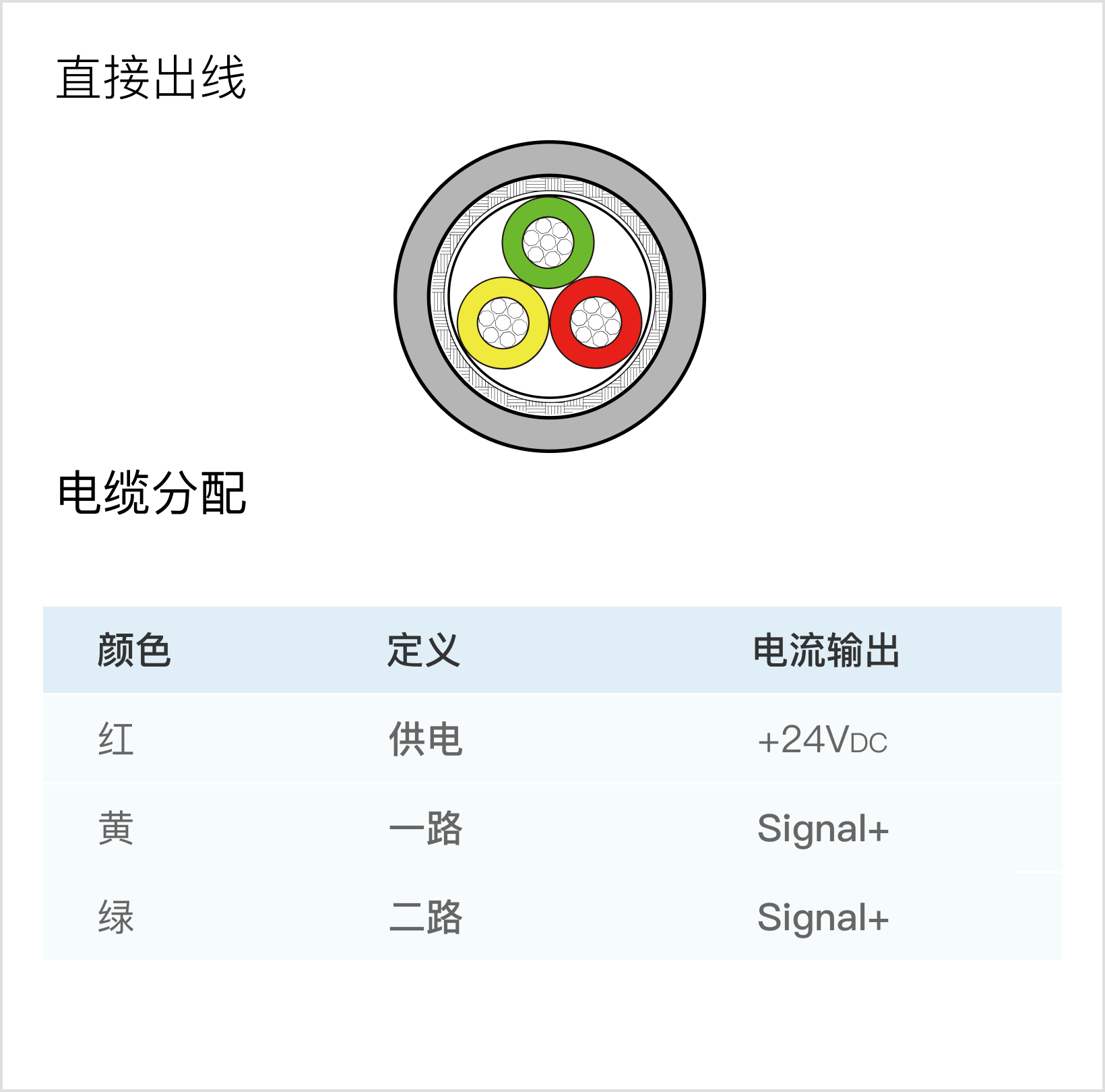

| 防護等級 | Ip protection | IP65(赫斯曼插)/IP67(M12×1或直出線) | |||||||||
