| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 0～0.8...1.0...1.6...3...10...40...50...60...100MPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S 150%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S 200%F.S | |||||||||
| 工作方式 | Operational Mode | 表壓，絕壓 | |||||||||
| 測量介質 | Measuring Media | 對不銹鋼304和 316L不腐蝕的氣、液體 | |||||||||
| 輸出信號 | Output signal | 0~5V, 4~20mA | |||||||||
| 工作電壓 | Operating voltage | 24VDC(16~32VDc) | |||||||||
| 綜合精度 | Accuracy | ±0.5%F.S(23℃±2℃)（典型值) | |||||||||
| 長期穩定性 | Long-term drift | ≤±0.2%F.S/ 年 | |||||||||
| 環境溫度 | Ambient temperature | -40℃～85℃ | |||||||||
| 介質溫度 | Medium temperature | -40℃～125℃ | |||||||||
| 存儲溫度 | Storage temperature | -40℃～125℃ | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥200MΩ/200VDC | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干擾 | EMC proof | IEC 61000-6-2/3/4 | |||||||||
| 外殼材質 | Material | 不銹鋼 | |||||||||

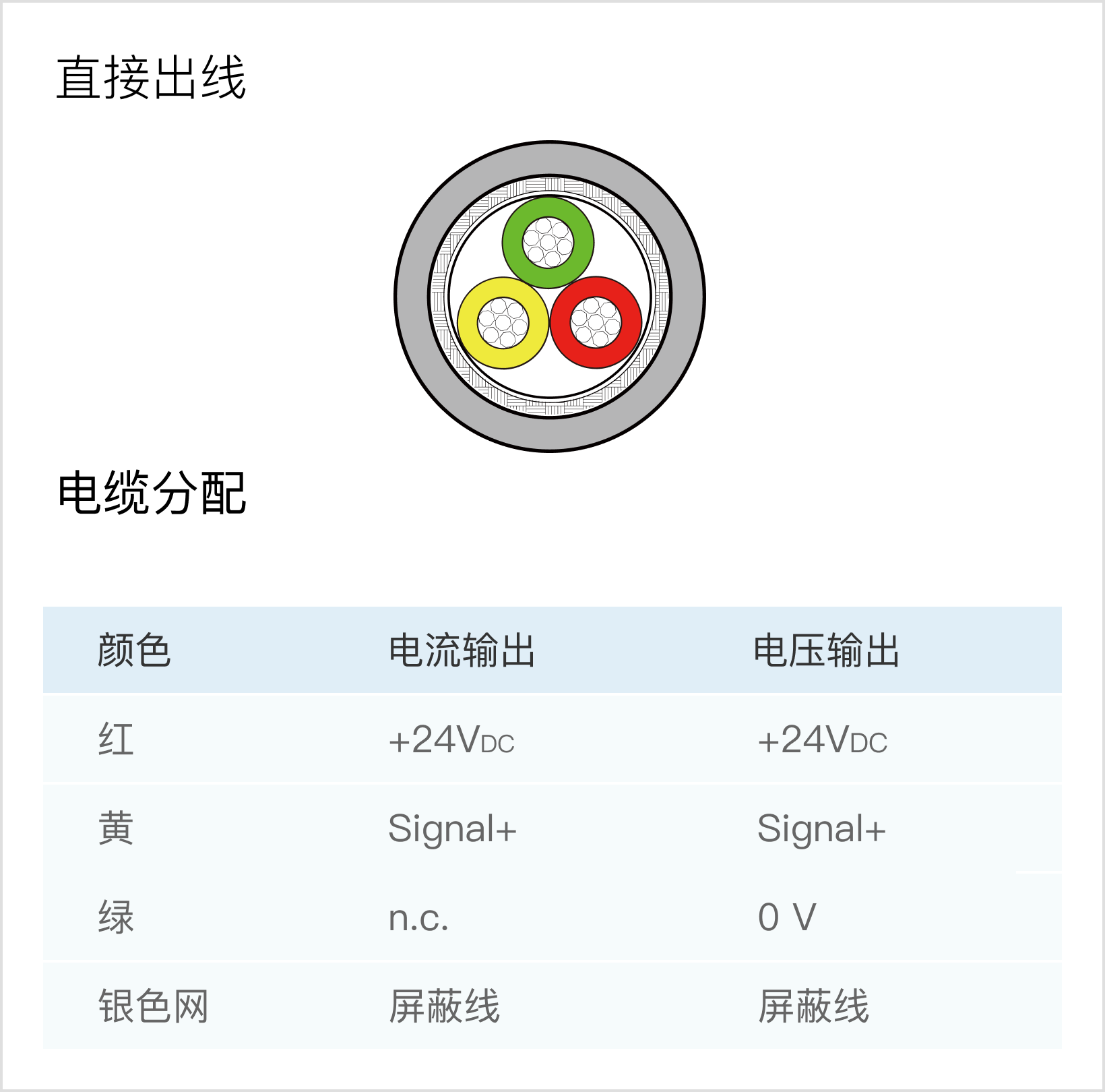

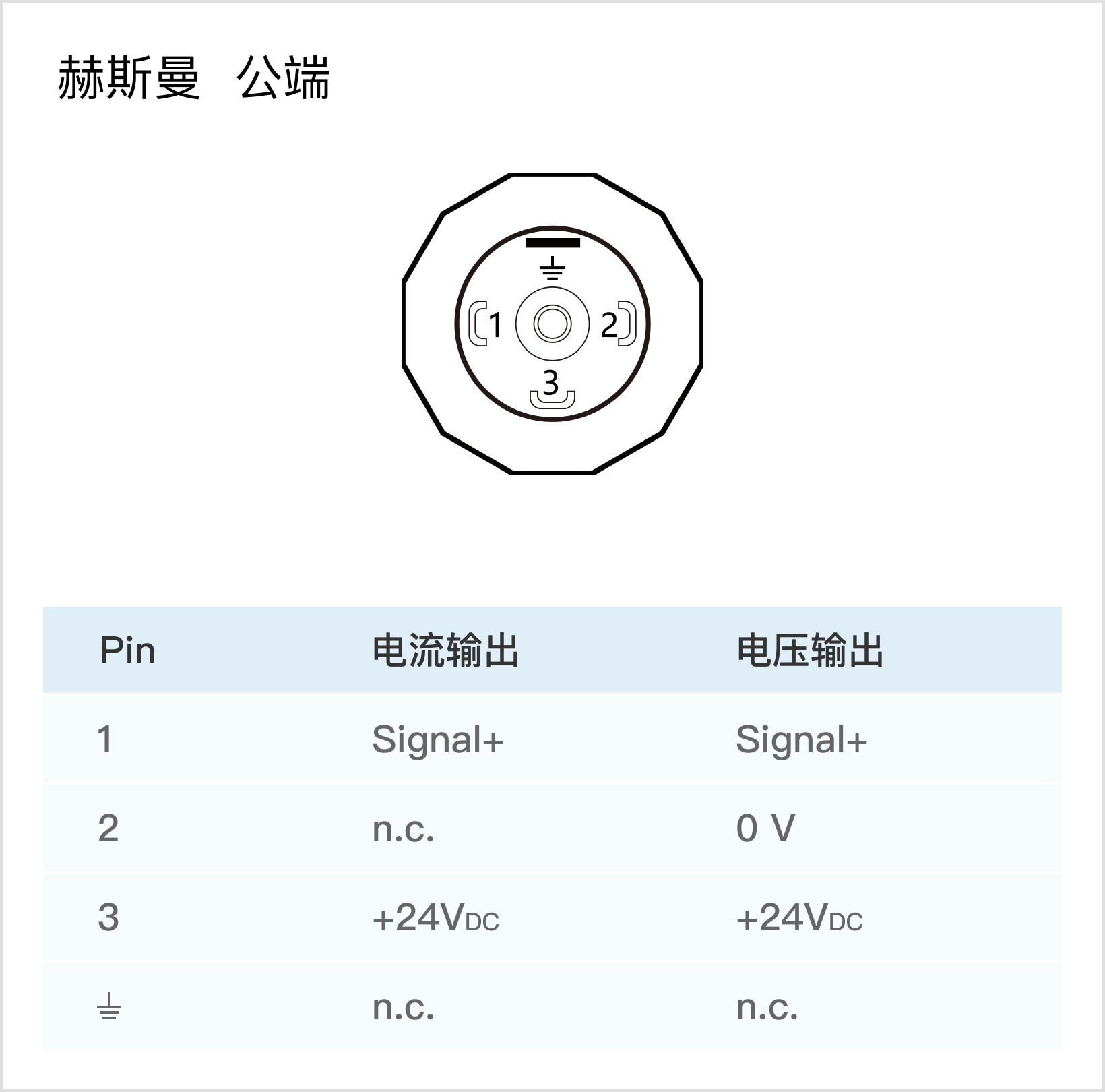

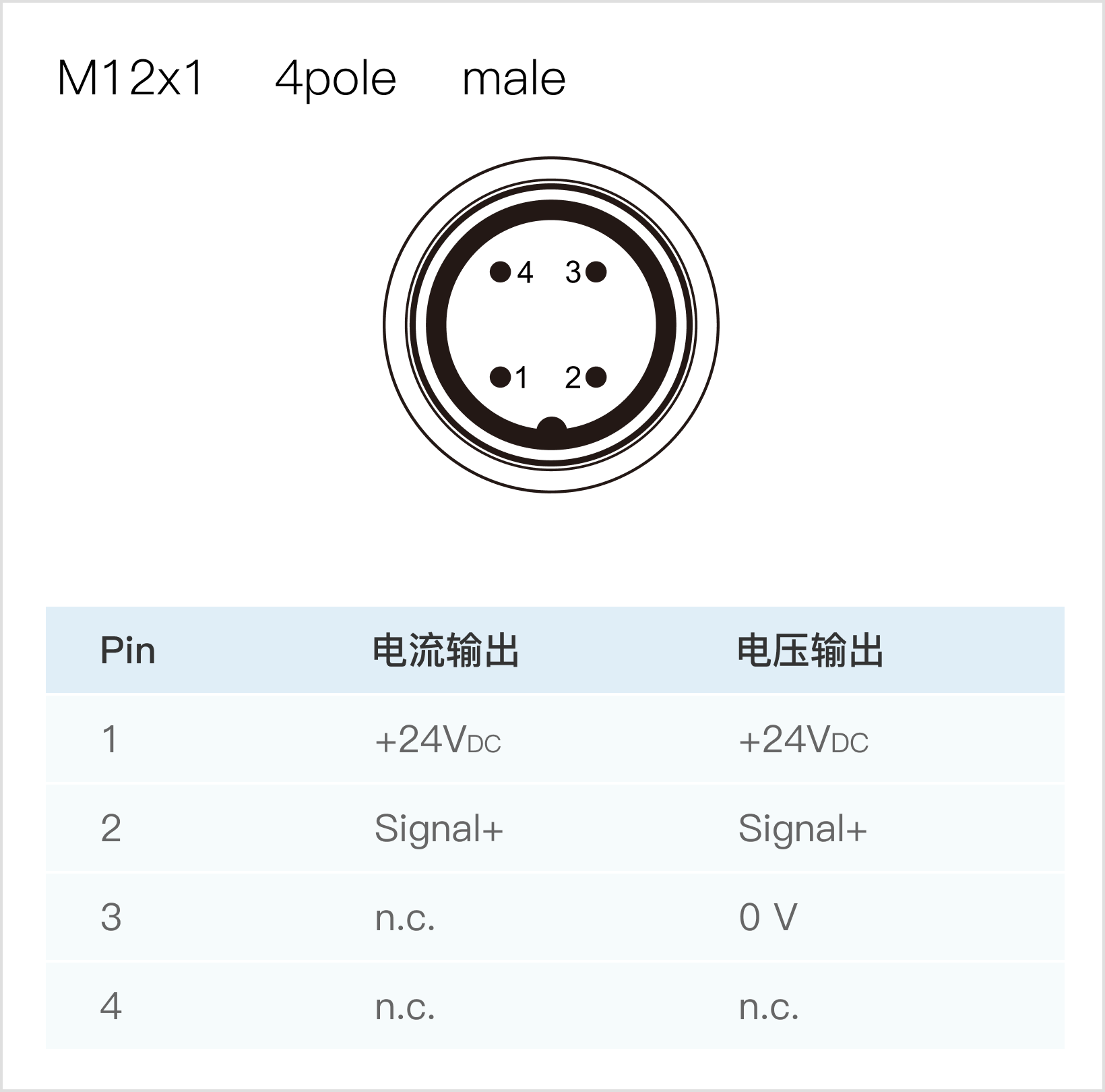

| 防護等級 | Ip protection | IP65(赫斯曼插)/IP67(M12×1或直出線) | |||||||||
