| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 0~100kPa…1MPa…4MPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S | |||||||||
| 測量介質 | Measuring Media | 對不銹鋼304和 316L不腐蝕的氣、液體 | |||||||||
| 輸出信號 | Output signal | 0.5~4.5V 0~5V 0~10V 4~20mA | |||||||||
| 工作電壓 | Operating voltage | 24VDC(16~32VDC) | |||||||||
| 綜合精度 | Accuracy | ±0.2%F.S/ 年（典值） | |||||||||
| 工作溫度范圍 | Operating temperature range | -30~+80℃ | |||||||||
| 消耗電流 | Current consumption | ≤10mA | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干擾 | EMC proof | IEC 61000-6-2/3/4 | |||||||||
| 外殼材質 | Material | 不銹鋼 | |||||||||

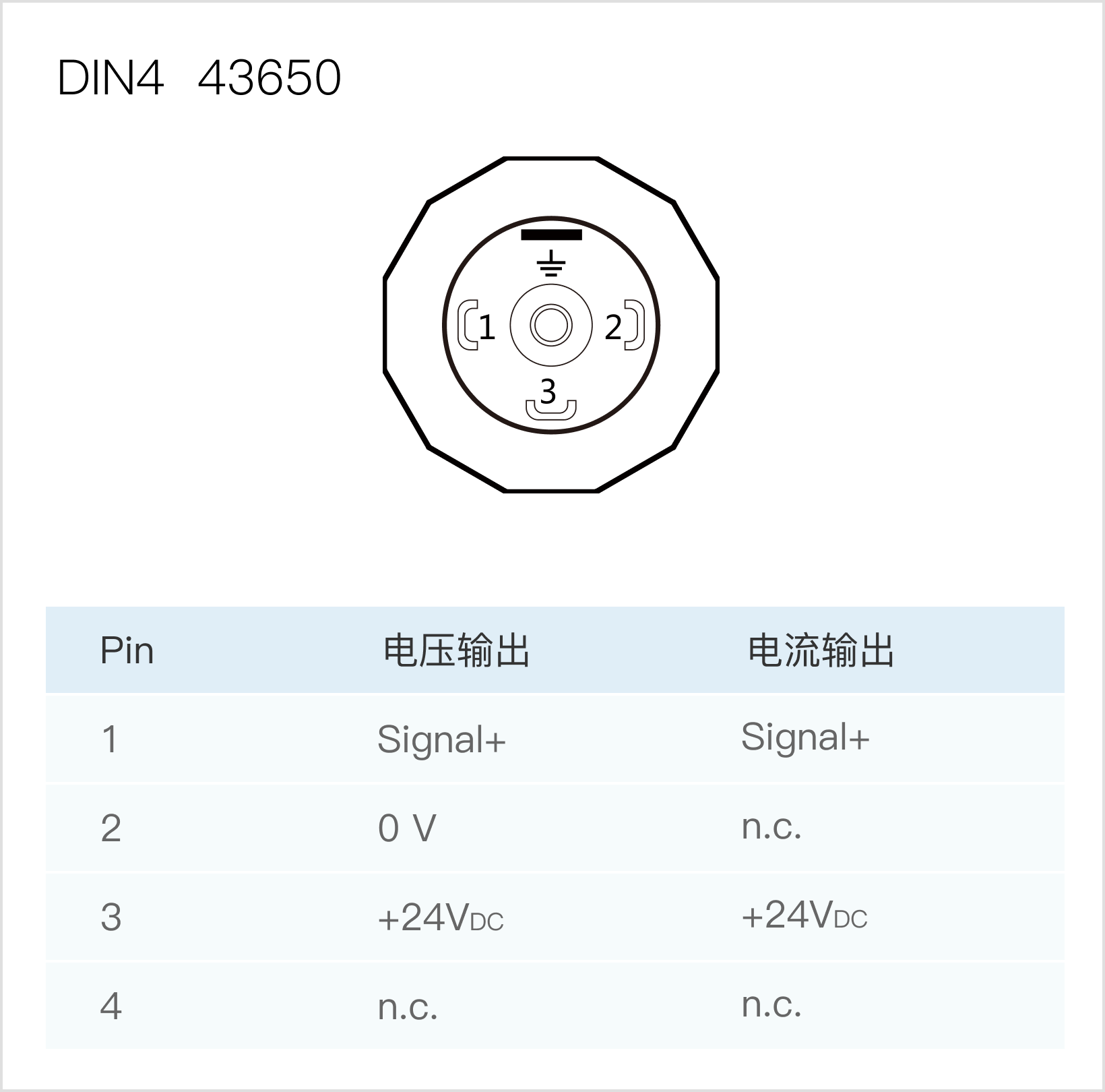

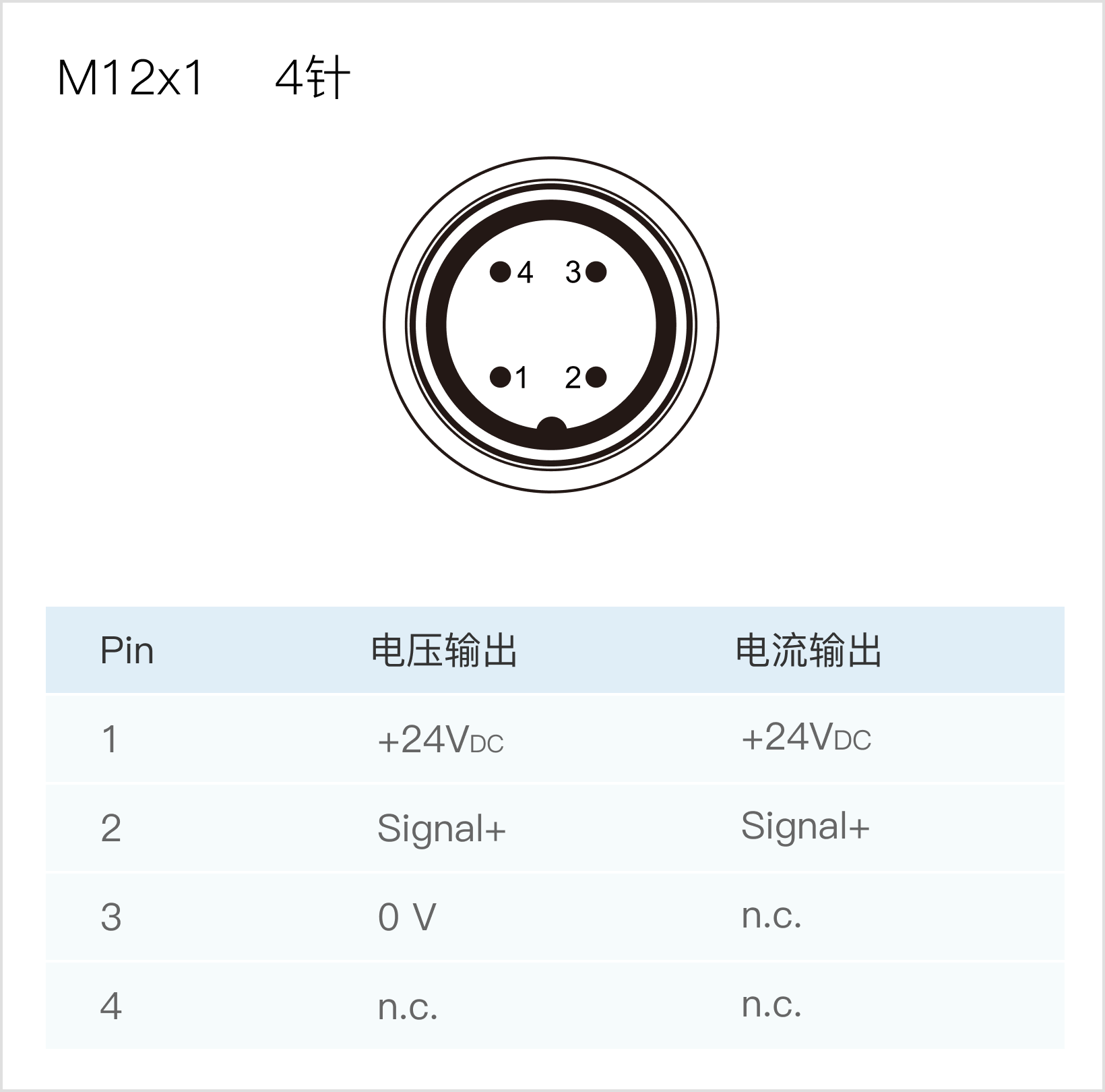

| 防護等級 | IP protection | IP67(M12×1)/IP65(DIN 43650) | |||||||||
