| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 0 ~ -5KPa ~ -10KPa ~ -50KPa ~ -100KPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S 150%F.S | |||||||||
| 工作方式 | Operational Mode | 負壓 | |||||||||
| 測量介質 | Measuring Media | 氣體 | |||||||||
| 工作電壓 | Operating voltage | 24V DC (16～32VDC) | |||||||||

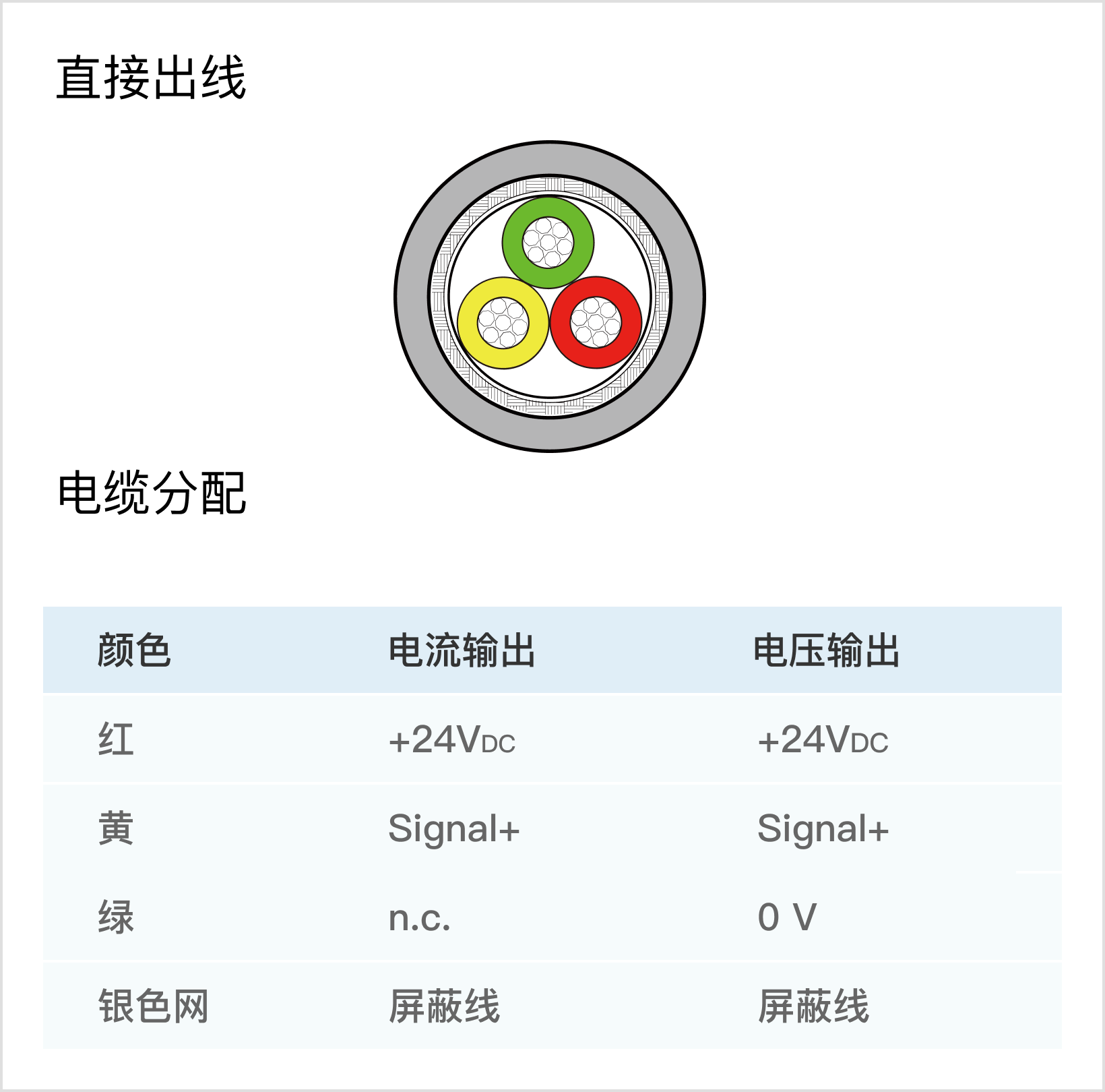

| 輸出信號 | Output signal | (0～5)V 3線制 (4～20)mA | |||||||||
| 綜合精度 | Accuracy | ±0.5%F.S(23℃±2℃) | |||||||||
| 長期穩定性 | Long-term drift | ≤±0.2%F.S/年（典值) | |||||||||
| 環境溫度 | Ambient temperature | -40℃～85℃ | |||||||||
| 介質溫度 | Medium temperature | -40℃～125℃ | |||||||||
| 絕緣阻抗 | Insulation impedance | ≥200MΩ/200VDC | |||||||||
| 耐振性能 | Vibation resistance | IEC 60068-2-6(5...2000Hz，20g） | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27(50g，11ms） | |||||||||
| 電磁兼容 | Electromagnetic compatibility | IEC 61000-6-2/3/4 | |||||||||

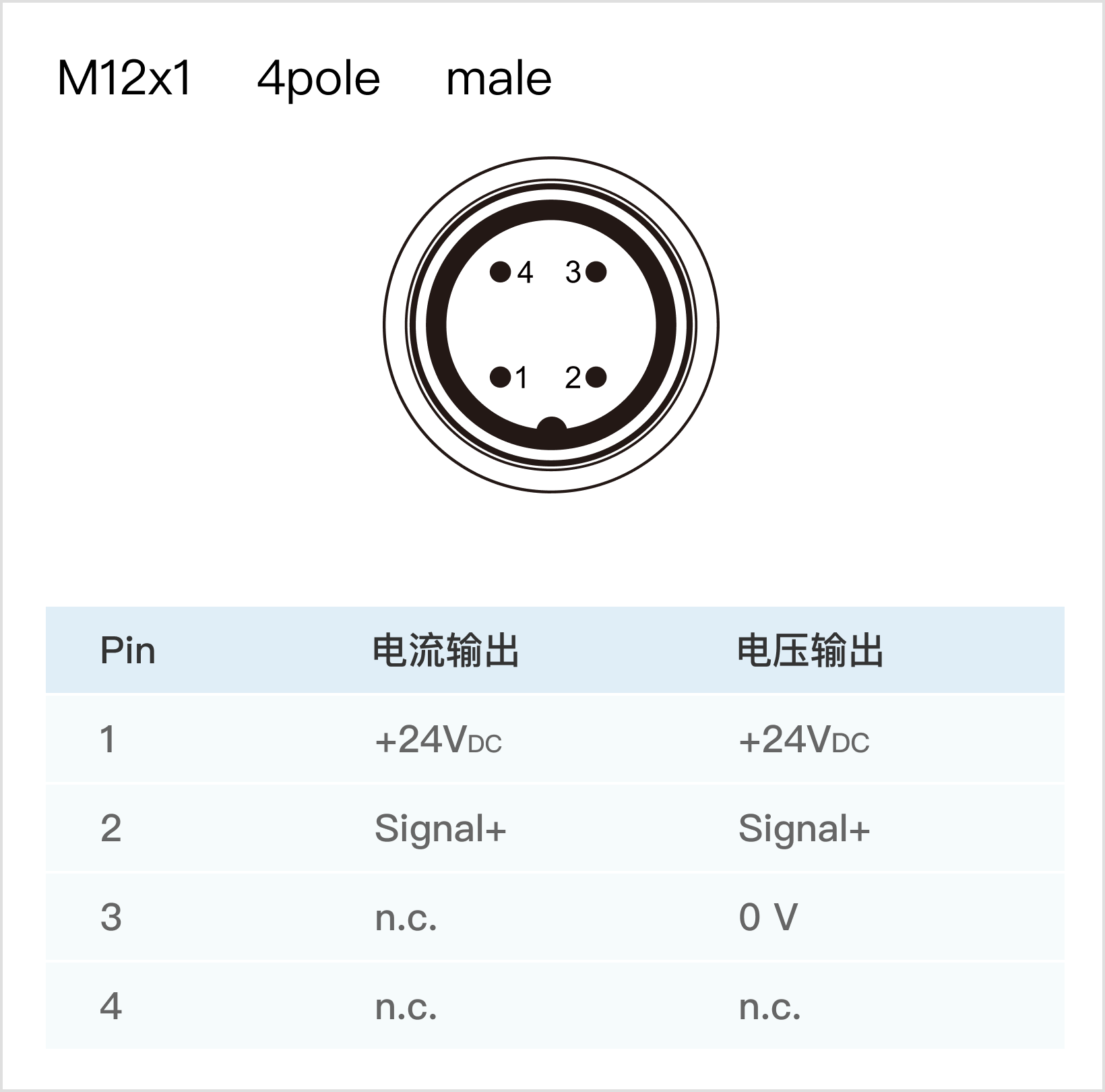

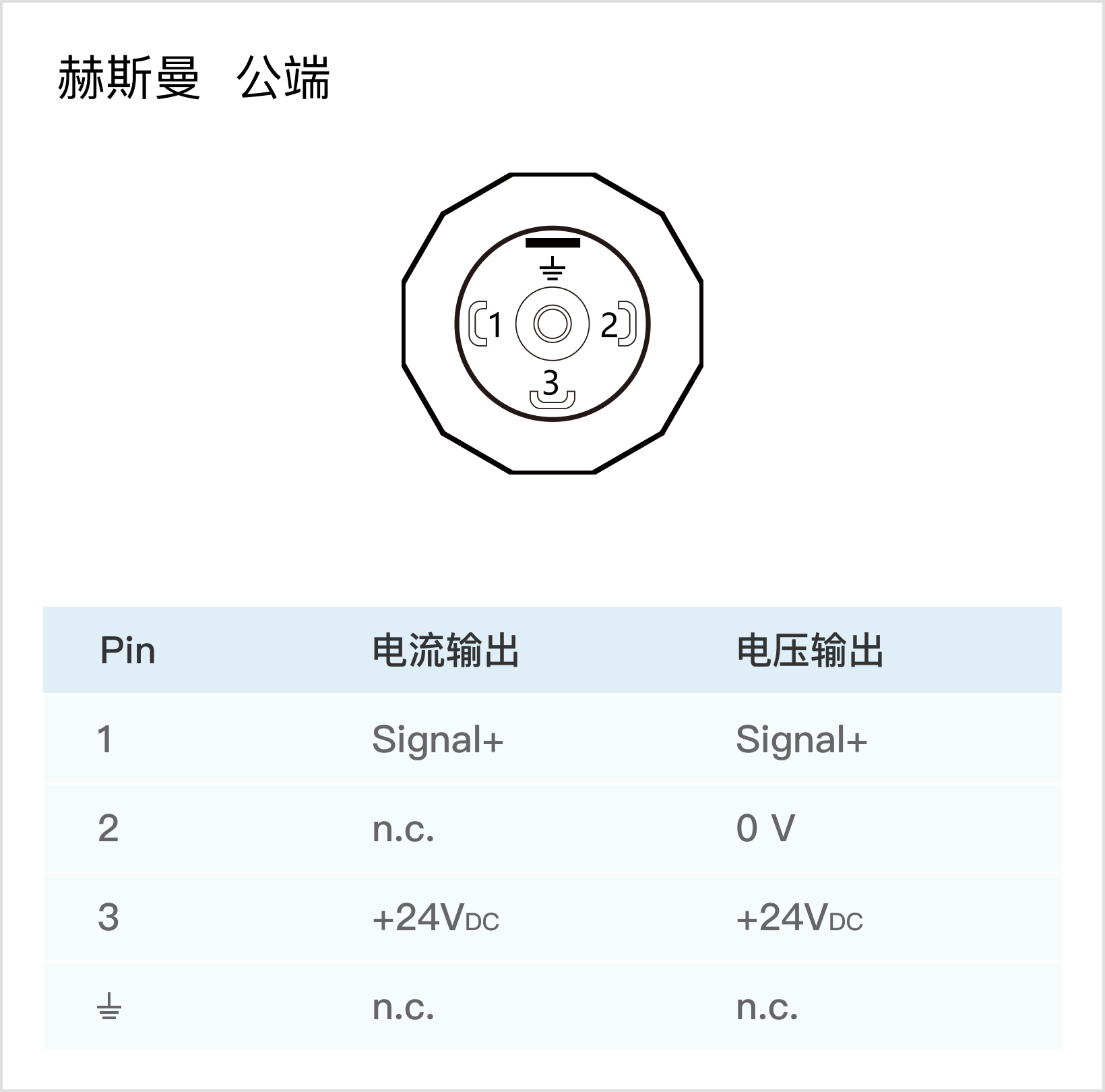

| 防護等級 | IP protection | IP65(赫斯曼插)/IP67(M12×1或直出線) | |||||||||
